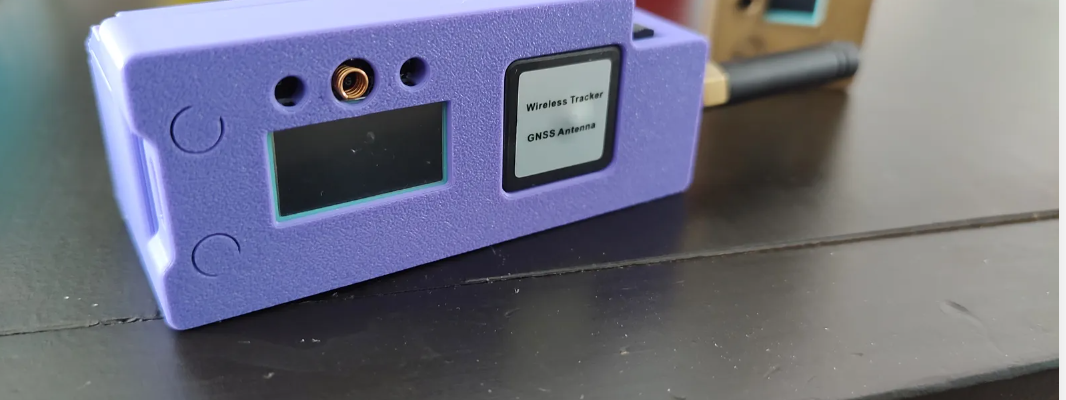

The best Meshtastic device for beginners: Heltec Wireless Tracker review
Conflict of Interest Statement
The Heltec Wireless Tracker reviewed in this article was sent to me free of charge by Heltec for testing and review. The author did not pay for the device; Heltec has no responsibility for the content of this article.
The opinions expressed in this article are based on the author's actual experience. This review was not provided to Heltec for review prior to publication, and all opinions expressed are independently formed.
Many newcomers to the tech community are enthusiastic about LoRa and Meshtastic, but when they actually start using them, they often encounter barriers to entry. For example, soldering is required, and lacking experience can lead to concerns about damaging the equipment. Wiring is complex, with a bewildering array of modules and jumpers. As a result, many people buy the equipment but ultimately give up.
For beginners, the most important thing isn't "powerful functionality" but "easy to use." A truly beginner-friendly device should be usable right out of the box, requiring no additional soldering or complex configuration, allowing users to quickly experience the joy of Meshtastic without being overwhelmed by the hassle.
The Heltec LoRa32 V3 (commonly known as the Heltec V3) has long been one of the most popular entry-level development boards in our Chinese community. Now, a more comprehensive and easier-to-use device, the Heltec Wireless Tracker, is available as an alternative to the LoRa32 V3.
Compared to the Heltec V3, it not only has all the same features, but also has an integrated GPS module, allowing it to be used out of the box without any additional wiring or soldering, let alone manual configuration of GPS pins. This makes it one of the more suitable Meshtastic devices for beginners.
Heltec Wireless Tracker Highlights
This device integrates LoRa communication and GNSS positioning, and adopts a low-power design, making it suitable for long-term operation.
· Core configuration: ESP32-S3FN8 + SX1262 + UC6580, supporting LoRa, Wi-Fi, Bluetooth and GNSS positioning.
· GNSS multi-system support: Compatible with GPS, GLONASS, BeiDou (BDS), Galileo, NAVIC and QZSS, supporting L1 + L5/L2 frequency bands to improve positioning accuracy.
· Low power consumption optimization: Based on 22nm process design, suitable for long-term use.
· Battery management: It comes with SH1.25-2 interface, supports lithium battery charge and discharge management, and can automatically switch between USB/battery power supply.
· Screen upgrade: Equipped with a 0.96-inch 160×80 TFT screen, compared to the 128×64 OLED of the Heltec V3, the contrast and resolution have been improved.
· Integrated design: All components are already soldered and can be used directly without the need for additional modules.
The left picture below shows the Heltec Wireless Tracker; the right picture shows the Heltec LoRa32 v3.
For novices, the biggest problem is often how to connect the various modules together, but this device completely eliminates these troubles:
1. GPS is directly available - Compared with Heltec V3, it has built-in GPS, no external module is required, and there is no need to manually configure the PIN pin.
2. Zero extra soldering - Unlike some development boards that require you to solder the screen, GPS module or battery connector yourself, this device has all the components soldered in and is plug-and-play.
3. More flexible antenna design - The device comes with LoRa and GNSS IPEX antenna interfaces, and a built-in GPS ceramic antenna, which can be used directly when the signal is good, without the need for an external antenna. Because it has an IPEX antenna interface, it is also very easy to connect an external antenna when needed.
4. Sharper screen – Compared to the OLED screen of the Heltec V3, this device uses a TFT color screen with improved resolution and contrast.
Simply put, this is a truly out-of-the-box LoRa GPS device that is extremely friendly to novice users and also suitable for advanced users.
price
In terms of price, the official Taobao store of Heltec LoRa32 V3 sells it for 97 yuan, while the Heltec Wireless Tracker sells it for 135 yuan (based on the data queried on the date of this article's publication).
The Heltec Wireless Tracker is ¥38 more expensive than the LoRa32 V3, but this difference comes at the expense of a more convenient hands-on experience. However, for those with more hands-on experience, the LoRa32 V3 remains a more cost-effective option.
For beginners, firstly, it requires no soldering, saving the cost of purchasing additional tools like soldering irons and solder, while also avoiding the risks and hassles that come with soldering. Secondly, the device comes with built-in GPS, eliminating the need for manual configuration and significantly reducing the potential for pitfalls. Furthermore, the Wireless Tracker features a higher-resolution TFT color screen, providing a superior visual experience compared to the LoRa32 V3's OLED screen.
Being fully functional out of the box does reduce the time it takes for new users to get started. Whether this premium is worth it depends on your personal preference for convenience.
How is GPS positioning performance?
One of the common pain points of GNSS devices is the long time to first fix, but the Heltec Wireless Tracker's GPS performance is quite good.
In open environments, it can complete a GPS cold start (Fix) in just 3 minutes, compared to the 10-15 minutes it takes for traditional GPS devices to complete their initial Fix. Once the initial fix is complete, the device's position updates remain stable, making it ideal for real-time tracking.
In addition, the built-in GPS antenna is sufficient to cope with most usage scenarios. If you encounter an environment with weak signals, thanks to the GNSS IPEX external interface on the board, you can also connect an external high-gain GNSS antenna to improve reception capabilities.
Who is the Heltec Wireless Tracker suitable for?
This device is particularly suitable for the following scenarios:
· For beginners to get started with LoRa, there is no need for additional soldering or module configuration, reducing learning costs.
· Place it in the car as a mobile node, such as for vehicle positioning, personnel tracking, and outdoor adventures.
Advantages:
✔ Built-in GPS, ready to use out of the box
✔ Supports LoRa, Wi-Fi, and Bluetooth, with strong communication capabilities. With WiFi, the node can independently connect to the Internet's MQTT server and be used without a mobile phone
✔ TFT color screen, better display effect
Disadvantages:
❌ Slightly higher power consumption compared to Heltec V3
❌ GPS still takes some time to fix for the first time in an obstructed environment
Get started with Heltec Wireless Tracker
1. Connect the LoRa antenna (required)
· Before powering on the device, you must connect the LoRa antenna first, otherwise the RF module may be damaged.
· The GNSS antenna is optional. The device comes with a built-in GPS ceramic antenna, which is sufficient for use in open environments.
2. Flash Meshtastic firmware
1. Connect your device to your computer using a USB-C cable.
2. Open your browser and visit the Meshtastic web firmware flasher at flasher.meshtastic.org .
3. Select the device model Heltec Wireless Tracker V1.1.
4. Select the latest Meshtastic firmware marked as Stable (Beta), click Flash, and wait for the flashing to complete.
After the flash is complete, the device will automatically reboot and enter the Meshtastic network.
Device Configuration: Joining the Meshtastic Network
1. Mobile phone pairing
1. Open the Meshtastic app and click "+" to search for devices.
2. Select Heltec Wireless Tracker and enter the six-digit pairing code on the device screen to bind.
2. Set the LoRa frequency band and node name
1. Go to Settings > Region and select the correct frequency band:
· CN470 (China) . Domestic readers please choose this.
· EU868 (Europe)
· US915 (North America)
1. Configure the node name for easy identification and enable GPS mode in the radio configuration.
2. After saving the settings, the device restarts and starts broadcasting its GPS location and joining the Meshtastic network.
Summary: The best LoRa GPS device for beginners
Heltec Wireless Tracker has made significant upgrades based on the Heltec LoRa32 V3, with integrated GPS, a better screen, and is completely ready to use out of the box, truly achieving zero threshold to get started.
The Wireless Tracker is indeed beginner-friendly in terms of functional integration and ease of use, but it still depends on personal needs. If you don't mind soldering or external modules yourself, LoRa32 V3 is still a cost-effective solution.
